Hydraulic cylinder repair

We proceeded as follows:

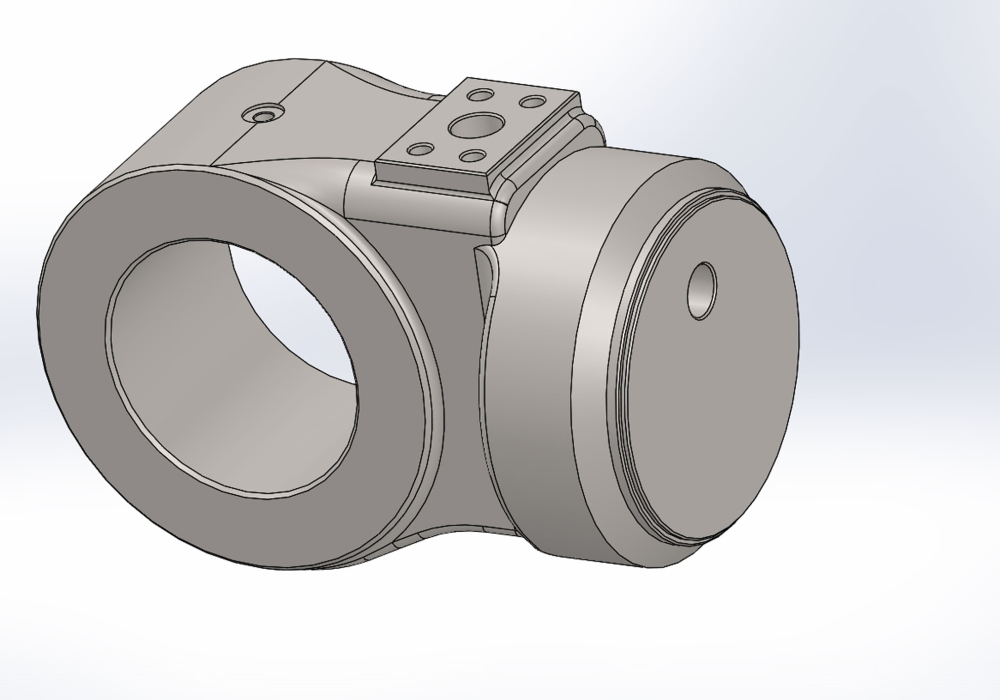

• First, the cylinder base eye was drawn in our CAD software.

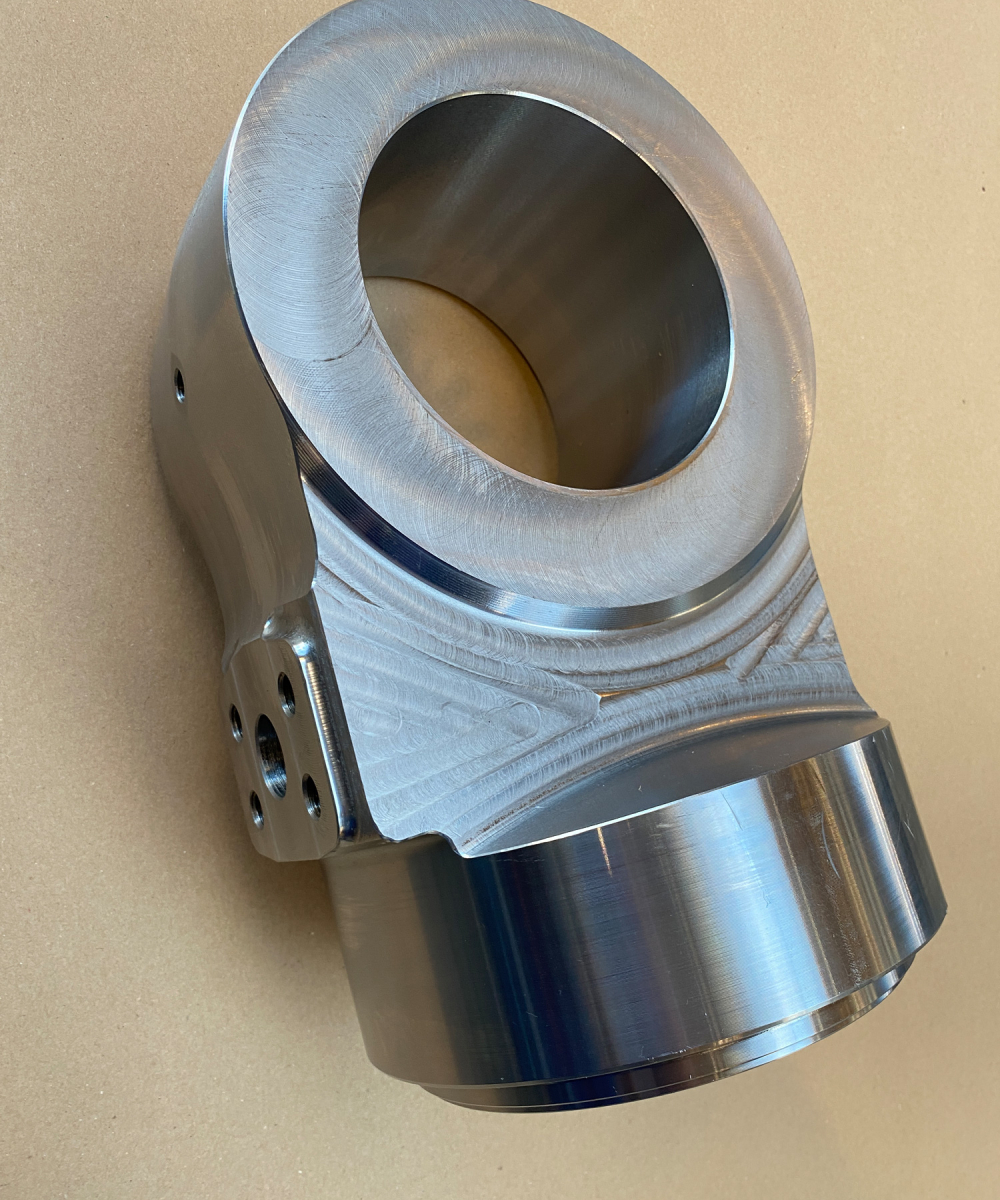

• The second step was to produce the new cylinder base eye.

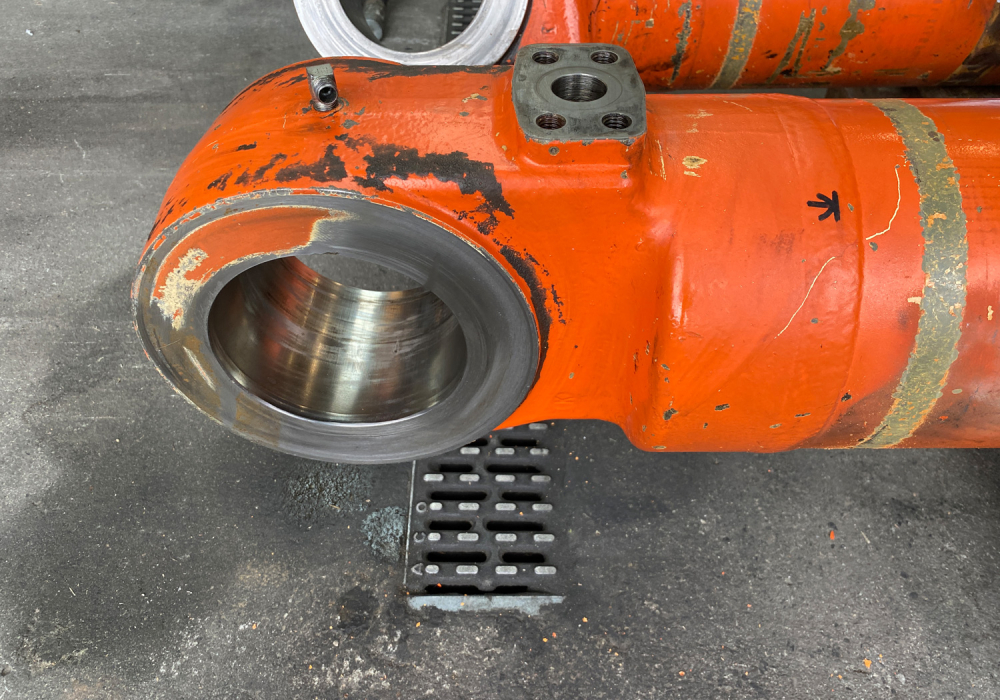

• The old eye was then separated from the cylinder and the tube prepared for the new eye.

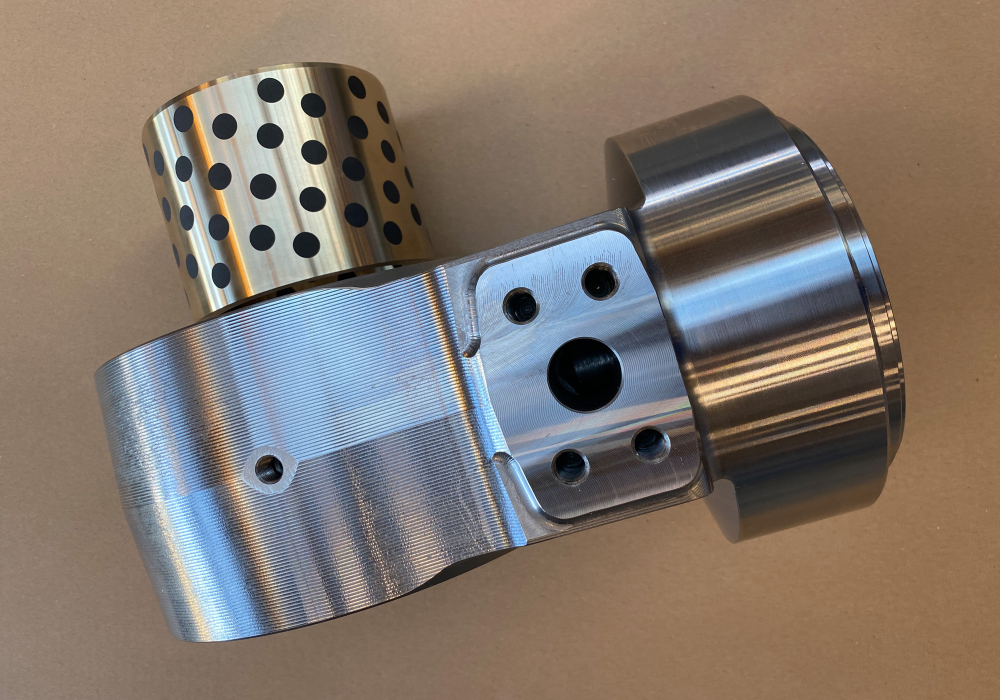

• A brass bearing bush was then fitted with graphite.

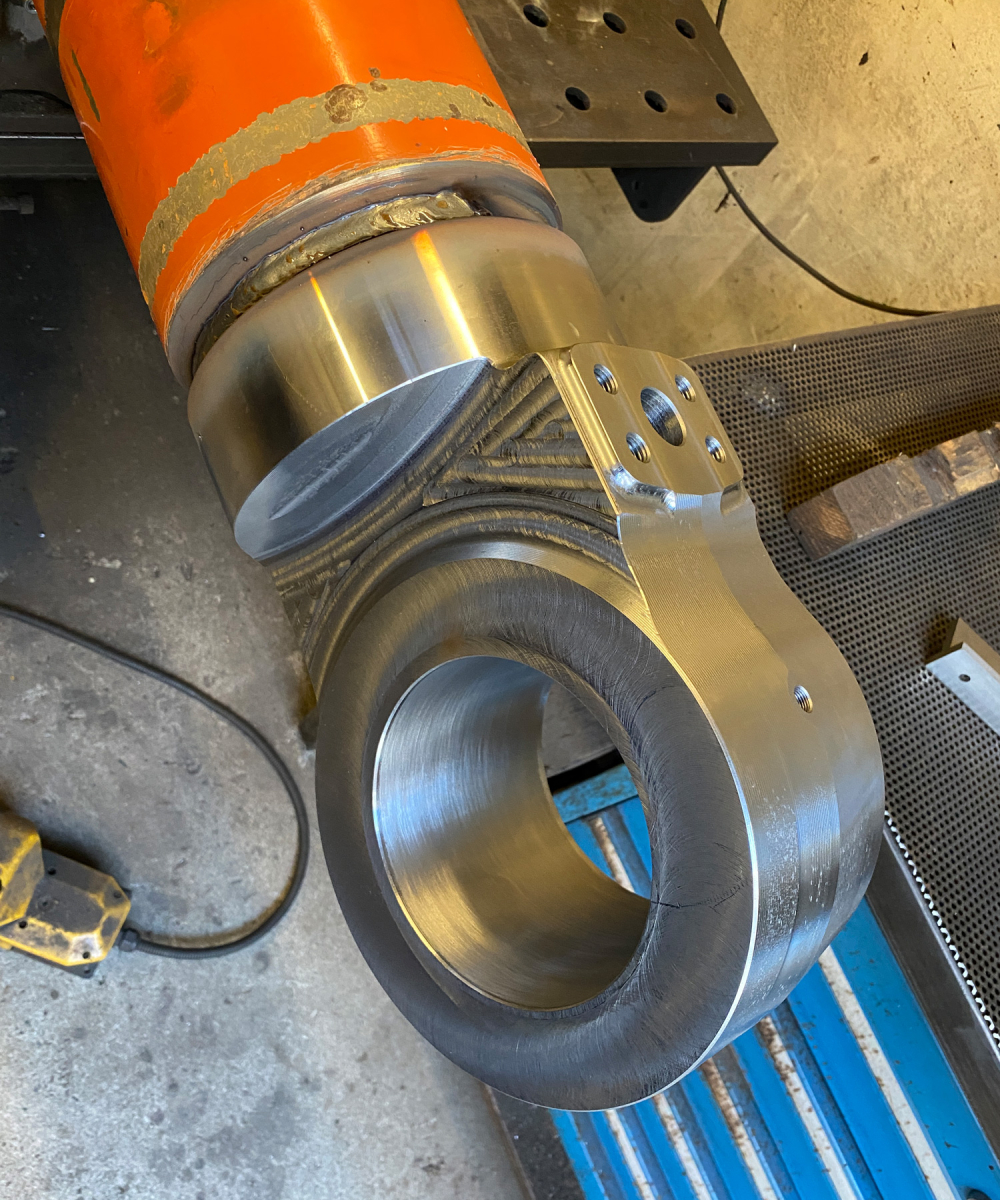

• The next step was to weld the bottom eye back on.
• Finally, the cylinder was sealed using new seals and tested for function and tightness.
