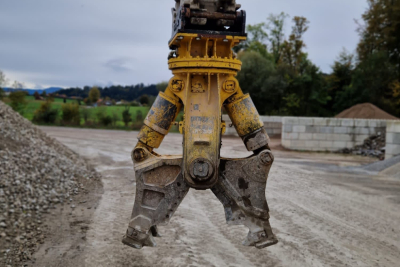

Concrete biter cylinder

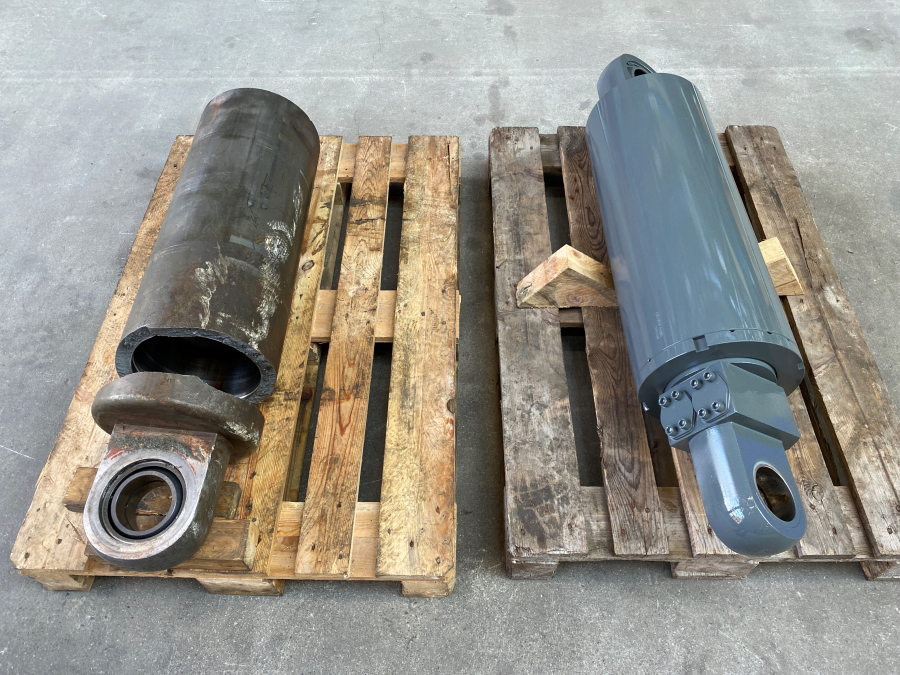

As the old cylinder could no longer be repaired, a new one had to be manufactured.

The first step was to completely dismantle, clean and measure the old cylinder.

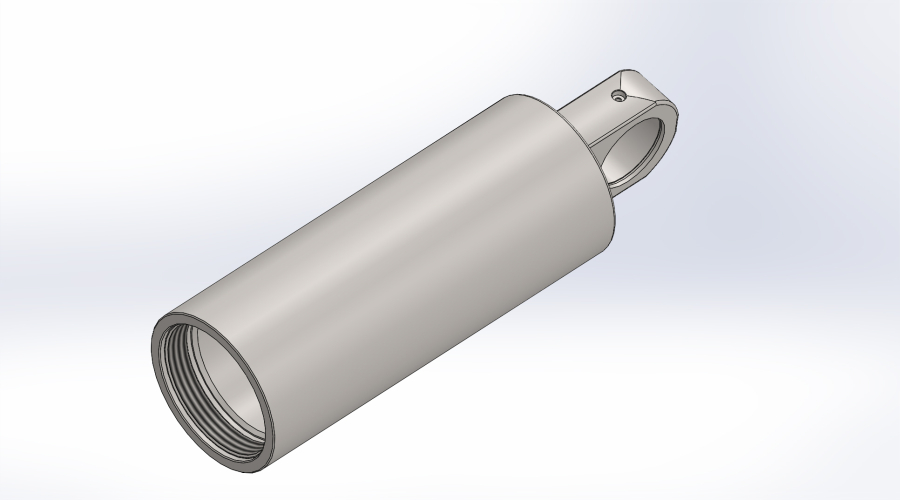

The new drawing of the cylinder barrel with base could then be created.

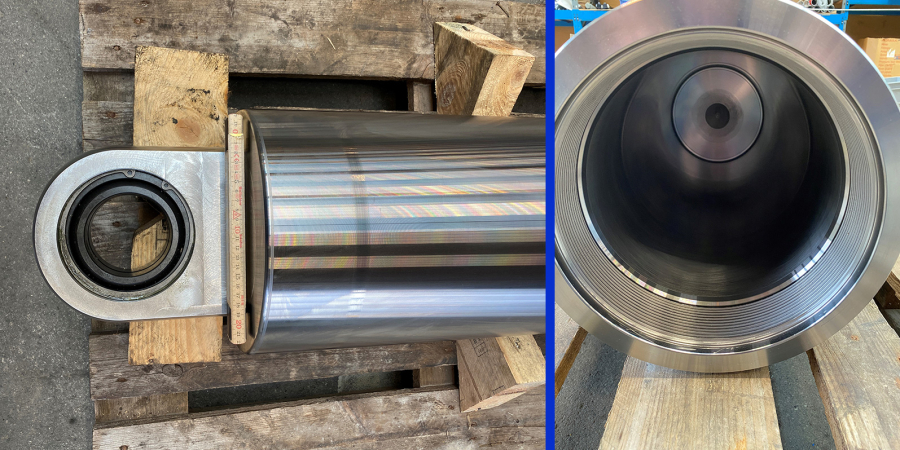

The new cylinder barrel was made from solid material.

The following were used: CNC lathe, milling machine and honing machine.

The cylinder was then carefully sealed and subjected to extensive testing.

To increase the corrosion resistance, the Beisser cylinder was finally coated with a 2K paint.
